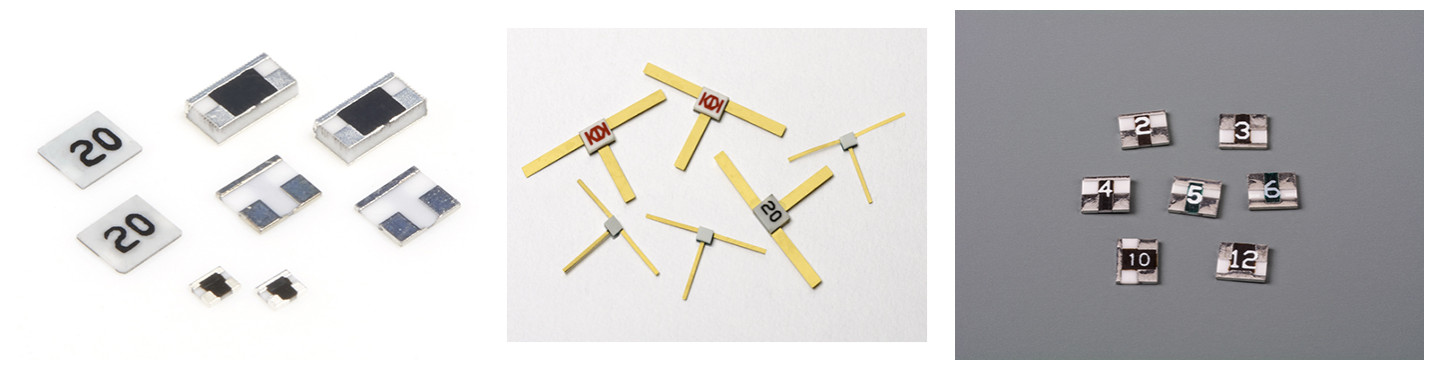

藥丸式射頻終端負載和貼片式衰減器
藥丸式射頻終端負載和貼片式衰減器
重點基本參數

藥丸式衰減器 1W 12GHz 衰減值20dB

藥丸式終端負載3W 18GHz

適合嵌入式和微帶組裝


訂購周期長 8-10周

品牌：Aeroflex-API Tech

物料詳情頁了解

API Tech 茶葉品牌供應貼片式載荷元器件封裝，功效自由高達250W

Available Pill Terminations

Datasheet

Power
(Watts)

Frequency
(GHz)

VSWR

Ceramic
Substrate

Resistive
Film

Diameter
(Inches)

Width
(Inches)

Height
(Inches)

PST-1

1

18

1.5

BeO

Thin

0.250

0.060

0.125

PST-2

3

18

1.5

BeO

Thin

0.250

0.060

0.125

PST-5

1

6

1.5

Alumina

Thin

0.250

0.030

0.075

PST-62

1

18

1.5

Alumina

Thin

0.250

0.030

0.125


Available Pill Attenuators

Datasheet

Power
(Watts)

Frequency
(GHz)

VSWR

Ceramic
Substrate

Resistive
Film

Diameter
(Inches)

Width
(Inches)

Height
(Inches)

PSA

1

12

1.5

Alumina

Thin

0.250

0.060

0.125


Available Stripline Flange Terminations

Datasheet

Power
(Watts)

Frequency
(GHz)

VSWR

Ceramic
Substrate

Resistive
Film

Diameter
(Inches)

Width
(Inches)

Height
(Inches)

PFT500-10W

10

18

1.5

BeO

Thin

0.500

0.050

0.050

PFT500-1W

1

27

1.5

Alumina

Thin

0.500

0.050

0.050
