Features
- 800 – 1000 MHz
- Low Loss
- High Isolation
- Tight Amplitude Balance
- 90 deg Quadrature
- Surface Mountable
- CTE Matched
- AMPS, GSM, WCDMA, LTE Band
- Tape and Reel Option
Specifications

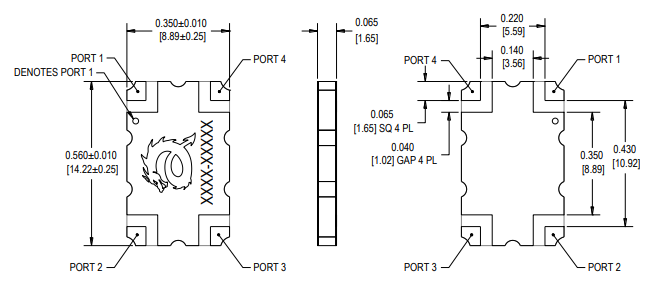

- Size: .560 x .350 inches
- Frequency: 800-1000 MHz
- Power: 175 W
- Insertion Loss: .12 dB
- Amplitude Balance: ± .2
- Isolation: 25 dB
- VSWR: 1.15
- Phase Balance: ± 2
