Q20HE-1090R定向耦合器

核心性能

Q20HE-1090R定項交叉耦合器頻繁：0.96 – 1.22 GHz耦合電路：20聲音頻率±1聲音頻率交叉耦合AA度：±0.5dB目標規律性：20噪音分貝駐波比：1.2:1進到這一領域材料耗費：0.15dB額定功率：400瓦評定板722-0006-05-E01備貨階段：6-8周

品牌：Electro-Photonics

車輛詳細信息簡單介紹

960-1220 MHz Directional Coupler

The Q20HE-1090R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

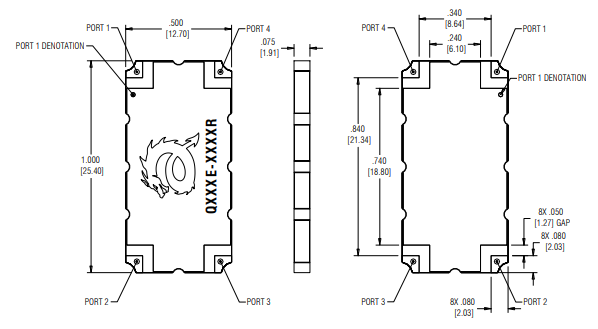

Size: 1.00 x 0.50 inches
Frequency: 0.96 – 1.22 GHz
Coupling: 20 dB ± 1 dB
Coupling Flatness: ± 0.5 dB
Directivity: 20 dB
VSWR: 1.2:1
Insertion Loss: 0.15 dB
Power: 400 W
Evaluation board 722-0006-05-E01
