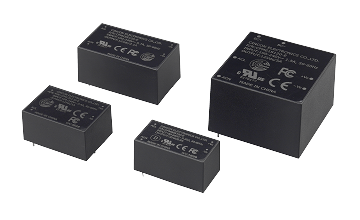

?CINCON封裝式 AC-DC 電源模塊

上線時間間隔：2023-05-30 17:04:43     觀看：1380

CINCON封裝式AC-DC電源具有好幾種規格尺(chi)寸，頻率范(fan)圍從6W到100W。所有產品均已全部(bu)通過IEC62368-1、UL62368-1、EN62368-1及其(qi)EN55032B類和(he)CIRSS/FCCB類驗證。針對(dui)CINCON的部(bu)分最新款號(hao)，它(ta)們滿足EN60335-1標準規定，并(bing)且(qie)具有(you)200的特(te)殊(shu)(shu)性(xing)能%峰值負載(zai)性(xing)能。這種特(te)殊(shu)(shu)的200%峰值負載(zai)性(xing)能滿足客戶(hu)在(zai)短(duan)期(qi)內突發性(xing)能源需(xu)求，現在(zai)能夠避免選擇(ze)其(qi)它(ta)超規格產品，降低(di)成本和(he)規劃(hua)空間(jian)/占用空間(jian)損耗。

杭州市立(li)維創(chuang)展(zhan)網(wang)絡是CINCON電(dian)(dian)壓(ya)功能(neng)的代(dai)銷商供應商商，給(gei)出CINCON電(dian)(dian)源(yuan)(yuan)開關模(mo)組的DC-DC轉(zhuan)化(hua)器、AC-DC電(dian)(dian)原、LED開關電(dian)(dian)源(yuan)(yuan)等(deng)，商品(pin)原廠出口，安全性能(neng)保證，極(ji)強產品(pin)報價競爭優勢，祝賀咨詢中心

詳細信息要了解CINCON主機電源請彈框：//m.takasago.net.cn/article/2177.html


ITE/Industrial On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM04S

4W

85-305

3.3V, 5V, 12V, 15V, 24V

Altitude 5000m
Class II

1.56x0.764x0.720
(PCB-mount)
1.62x0.83x0.787
(Encapsulated)
1.95.x0.71x0.689
(Wafer)

CFM06S

6W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

Altitude 5000m
Class II

1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer)

CFM12S

12W

90-264

5V, 9V, 12V, 15V, 24V

Altitude 5000m
Approval EN60335-1
Class II

1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer)

CFM20S

20W

90-264

5V, 12V, 15V, 24V, 48V

Altitude 5000m
Meets EN60335-1
Class II

2.382x1.300x0.906
(PCB-mount)
2.482x1.402x0.933
(Encapsulated)
3.000x1.300x0.831
(Wafer)

CFM25S

25W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II

2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer)

CFM36S

36W

90-264

5V, 12V, 15V, 24V, 48V

Altitude 5000m
Class I & Class II

3.00x1.50x1.100
(PCB-mount)
3.10x1.60x1.134
(Encapsulated)
3.00x1.50x1.000
(Wafer)

CFM41S

40W

90-264

12V, 15V, 24V, 36V, 48V, 5V

2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II

2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer)

CFM61S

60W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Class II

2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer)

ITE/Industrial Brick Power

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CBM70S

70W

90-264

12V, 24V, 36V, 48V

Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I

2.28x2.40x0.67

zCBM150S

150W

90-264

12V, 24V, 28V, 36V, 48V, 54V

Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I

4.60x2.40x0.78

CBM101S

100W

90-264

12V, 24V, 28V, 36V, 48V

Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I

4.60x2.40x0.67

PDF700S

700W

90-264

12V, 24V, 28V, 48V, 56V

Low Profile
Built-in PFC
Altitude 5000
Class I


PFC750

750W

90-264

390V

Low Profile
Built-in PFC
Altitude 5000


Medical Class II On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM21

20W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

2MOOP

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)

CFM21M

20W

90-264

5V, 9V, 12V, 15V, 24V

2MOPP
Low Profile
Altitude 5000m

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)
